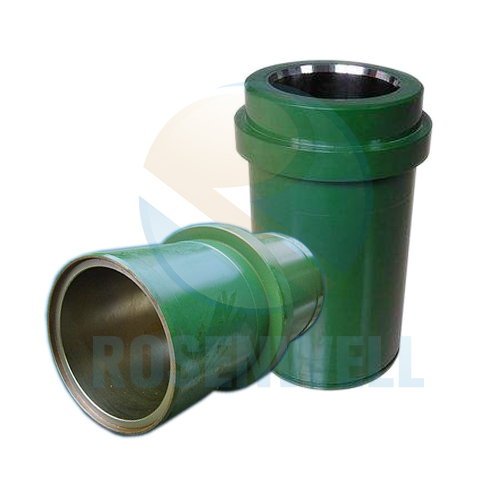

Bimetal Liner

Place of Origin:China

Standard: API-7K

Brand Name: Rosenwell Manufacturing

Capability: 10000 sets per month

Product Details

ROSENWELL manufacturing and supply Bi-metal Liners and Ceramic Liners covering Sizes of 5”, 5 1/2”,  6”, 6 1/2”, 7” , 140mm, 150mm,160mm, 170mm, 200mm, 230mm liners.

Description

HIGH CHROME SLEEVE LINER

The outer hull, or body, of the liner is manufactured using high-strength forging. ROSENWELL uses forgings exclusively to ensure consistent quality. The sleeve is centrifugally cast in the ROSENWELL facilities by skilled engineers. It has the maximum amount of chrome for the base metal and ROSENWELL adds molybdenum to increase the hardness depth. The sleeve is then inserted into the hull at a tightness at exceeds its counterparts. The ROSENWELL liner is rated to match the pressure rating of the pump per liner size.

ROSENWELL mud pump liners are unsurpassed in quality and reliability.

Features

The outer sleeve is forged steel with quality carbon steel,the inner sleeve is casted with high carbon and high chromium use the technology of centrigual casting, after treatment ,the hardness of it can reach to a level of 59-67HRC.

Liner Outer Sleeve: 45# forged steel,tensile strength is δb 610Mpa ,

yield strength is δs450Mpa,elongation hardness is  E17%,hardness is HRC180-200

Liner Inner Sleeve :high chromium cast iron(centrifugal forged). Annealing hardness is HRC40.Quenching hardness is HRC59-67

Chemical Composition C 2.8%-3.1% Cr 26%-28% Si 0.6%-0.9% Mn 0.5%-1%  Mo 0.5%-0.8% S.P0.05%


Rosenwell provide the following model and types liners and much more

BOMCO

F-500

F-800

F-1000

F-1300

F-1600

F-1600HL

F-1600L

F-2200HL

Hong Hua

HHF-500

HHF-800

HHF-1300

HHF-1600

3NB-1600F

5NB-1600

5NB-2400

EMSCO

F-500

F-800

F-1000

F-1300

F-1600

FD-1000

FC-2200

FB-1300

Gardner Denver

PAH

P7

P8/9

P10/11

PXL

PX-11

PZL

PY-FXD

National

7-P-50

8-P-80

9-P-100

10-P-130

12-P-160

14-P-200

14-P-220

N-1000/1300

Oilwell

A-850-PT

A-1100-PT

A-1400-PT

A-1700-PT

TSC

WF-500

WF-800

WF-1000

WF-1300

WF-1600

WF-2000

WF-2200

IDECO

T-500

T-800

T-1000

T-1300

T-1600

RUSSIAN

8T-650

UNBT-600

UNBT-950

UNBT-950A

UBT-400

UNB-600

BT-600

8T650-01

UB-590

8T310

QINGZHOU

SL3NB-1300A

QZ--1000

QZ-500

QZ-350

QZ800

SL3NB-1600
